Seat recording office chair 1

Seat recording office chair 1

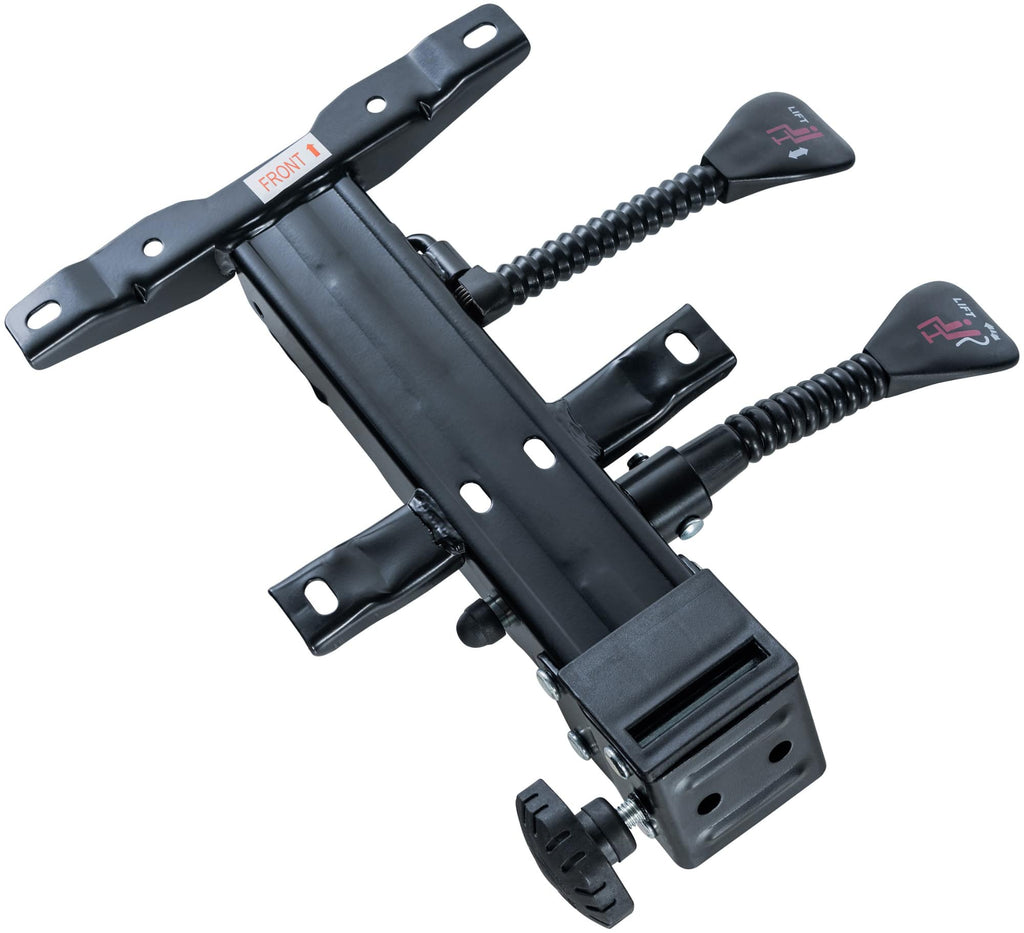

The seat holder made of sturdy metal has two operating levers.
The first lever controls the height adjustment of the swivel chair, while the second lever opens or locks the tilting function of the backrest.
The backrest can therefore be fixed at any angle.
The rotary wheel at the end of the seat holder adjusts the pressure and thus the effort required to set the desired angle of inclination. The seat holder is suitable for gas pressure springs with a diameter of 2.8 cm (28 mm).

Approx. dimensions:
Total height: 9.5 cm
Total length: 34cm
Total width: 35 cm
Hole spacing width front: 21.5 cm
Hole spacing width back: 16.5 cm
Hole spacing front and back: 16.5 cm
Weight: 2kg

Elongated hole dimensions: 0.8 x 1.6 cm

Suitable for our office chairs:
Pacific, Pacific with massage function, Oxygen, Troy, Power

And many other swivel chairs.

*Mounting material is not included.
